Excel Quick Start

Before you start

Install the Excel module first. If you have not imported ParseEncodedString.bas into your workbook yet, follow Install in Excel for Mac or Install in Excel for Windows.

Excel users only need the single ParseEncodedString.bas file, not the full repository.

  1. Run DataMatrix2Codes. On an empty sheet, it prepares the scanner worksheet.
  2. Scan raw strings into column A under the header CODE.
  3. Run DataMatrix2Codes again to convert the rows.
  4. Review rows where STATUS is not OK.

DataMatrix2Codes formats columns A:I as text before scanning and conversion. This matters because Excel treats some scanner input as formulas and converts long numeric-looking values such as PC to scientific notation unless the cells are already text.

See Example Codes for complete raw strings and their parsed PC, SN, LOTE, CAD, and review columns.

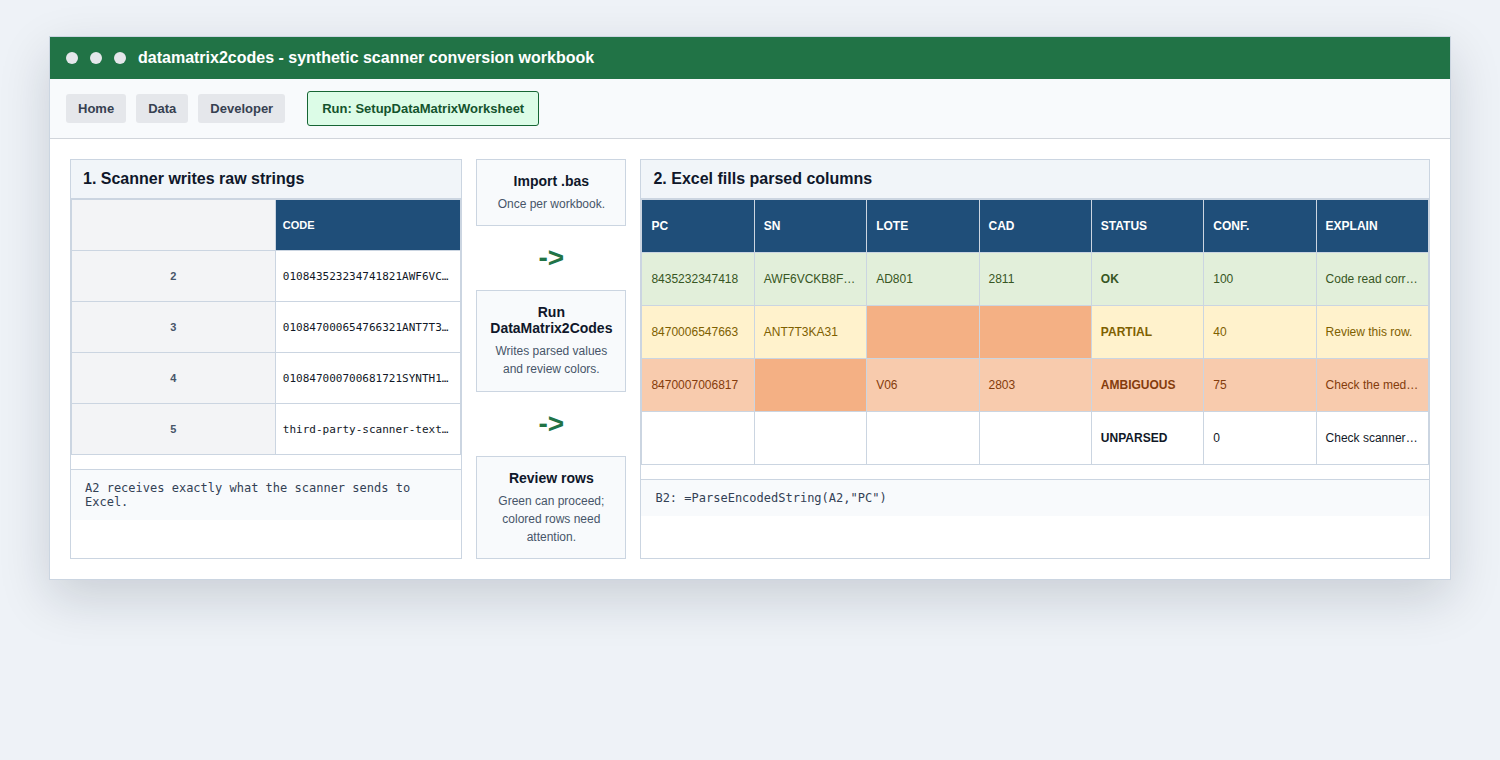

Synthetic Excel workbook showing scanner strings converted into PC, SN, LOTE, CAD, STATUS, CONFIDENCE, and EXPLAIN columns
Synthetic conversion workflow. The scanner writes raw strings in CODE; the macro fills parsed columns and review messages.

The macro creates this worksheet shape:

CODEPCSNLOTECADSTATUSCONFIDENCEHAS_GSEXPLAIN
raw scanparsedparsedparsedparsedreview status0-100TRUE/FALSEshort explanation

You can also use formulas directly:

=ParseEncodedString(A2,"PC")
=ParseEncodedString(A2,"SN")
=ParseEncodedString(A2,"LOTE")
=ParseEncodedString(A2,"CAD")
=ParseEncodedString(A2,"STATUS")
=ParseEncodedString(A2,"EXPLAIN")

If Excel rejects the formula, use your local argument separator. Spanish/macOS Excel commonly uses semicolons:

=ParseEncodedString(A2;"PC")

CAD is returned as YYMM. For example, November 2028 is 2811.
