Install In Excel For Mac

Use this path when the scanner writes directly into Microsoft Excel on macOS.

Requirements​

  • Microsoft Excel for Mac with macros enabled.
  • The single VBA module file: ParseEncodedString.bas.
  • A macro-enabled workbook (.xlsm).

No ActiveX component is required. The module is pure VBA and does not use VBScript.RegExp.

Use ParseEncodedString.bas for import. Excel's VBA file browser expects .bas for standard modules.

You do not need to download the full repository for Excel use. Download only ParseEncodedString.bas. If your browser saves it as ParseEncodedString.bas.txt, rename it to ParseEncodedString.bas before importing.

Import The VBA Module​

  1. Open Excel.
  2. Create or open the workbook where the scanner will write codes.
  3. Save it as an Excel Macro-Enabled Workbook (.xlsm).
  4. Download ParseEncodedString.bas.
  5. Open the Visual Basic editor from Tools > Macro > Visual Basic Editor. On some Macs this is also available from Developer > Visual Basic.
  6. Open Project Explorer with View > Project Explorer if the project tree is not visible.
  7. In Project Explorer, select VBAProject (your-workbook-name.xlsm).
  8. Use File > Import File... and select the downloaded ParseEncodedString.bas.
  9. If you do not see Import File..., right-click the workbook project or the Modules folder in Project Explorer and choose Import File....
  10. Confirm that a module named DataMatrix2CodesModule appears under Modules.
  11. Save the workbook again.

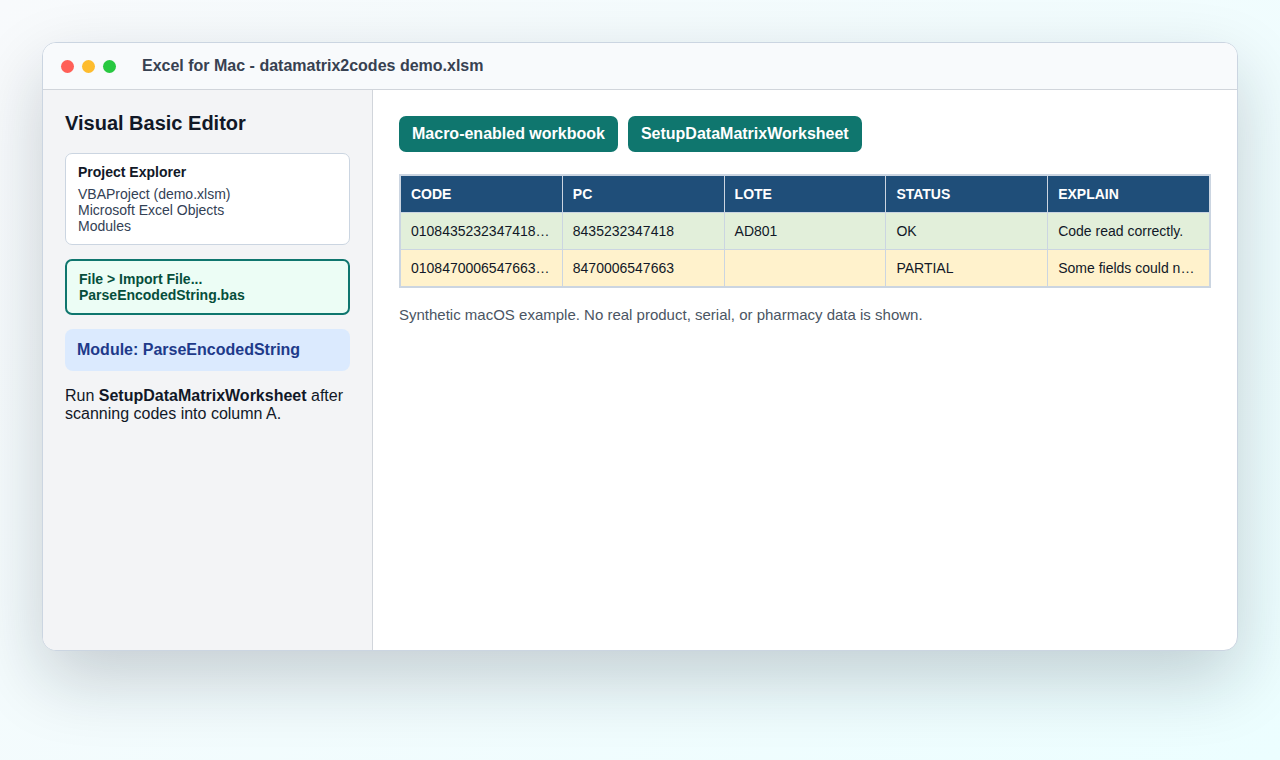

Synthetic macOS Excel workbook showing imported VBA module and status-colored scanner results
Synthetic macOS Excel setup. No real product or serial data is shown.

Next Step​

After the module is imported, follow Excel Quick Start. That page covers the scanner workflow, including when to run DataMatrix2Codes.

If Import Is Still Hidden​

Use the manual fallback:

  1. In the Visual Basic editor, use Insert > Module.
  2. Open macro/ParseEncodedString.bas in a text editor.
  3. Copy the code from Option Explicit downward into the new module. Skip the first Attribute VB_Name = ... line when pasting manually.
  4. Save the workbook as .xlsm.

Validate The Module​

Run RunDataMatrixSelfTest from the Visual Basic editor. It checks the bundled fixture cases and reports whether the VBA parser matches the expected behavior.

macOS Macro Security​

If Excel blocks macros, open Excel settings and allow macros for this workbook. Keep the workbook in a trusted folder if your organization requires it.
